MLA TOWER

​​

  • Project Name: Ministry of Legal Affairs Tower

  • Building Description: 1No. Twenty-Three (23) Storey Tower & 1No. Five (5) Storey Annex Building

  • Electrical Contractor: Lezama Electrical Services Limited (LESL)

  • Client: Sunway Construction (Caribbean) Limited  – Sunway Employed by UDCoTT

  • Designers: Engineering Consultants (ENCO)

  • Project Managers: Turner Alpha (TA)


ministry of legal affairs

MLA 1.jpg

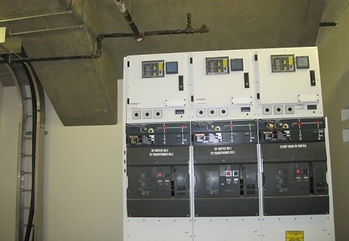

LESL supplied and installed the Merlin Gerin HV Switchgear – Switchgear Details

  • One (1) 200A Circuit Breaker (Vacuum Type) – From T&TEC

  • Two (2) 200A Circuit Breakers (Vacuum Type) – To Main Transformers

MLA 2.jpg

LESL supplied and installed the Main Transformers – Transformer Details

  • Number: 2

  • Type: Cooper

  • Size: 2.5MVA

  • Insulation: Envirotemp FR3

  • Voltage: 12kV to 480/277V

MLA 3.jpg

LESL supplied and installed the Main Riser Busbar – Riser Busbar Details

  • Number: 3

  • Type: Square D

  • Size: Two (2) 1600A & One (1) 800A

MLA 4.jpg

LESL installed (Supplied by Others) all Distribution Panels – Panel Details

  • Main Floor Panels – 480/277V, 3Ph, 400A (TYE)

  • Lighting Panels – 480/277V (TYE)

  • Normal Outlet Panels – 220/127 (TYE)

  • Computer Outlet Panels – 220/127V (TYE)
