TRINCITY VILLAGE CENTRE
Supply and installation of the HV and LV system for the shopping mall with 200+ stores. HV system consists of a total of six liquid type pad mounted transformers with a combined capacity of 11.5 MVa. The LV system consists five independent 2500A busbar systems totalling over 200 meters, specially designed to power shop panels and a LV system for Lights and Power with over 80 LV panels strategically located within the 17 LV electrical rooms.
Trincity village center
2500 A Busbar system specially designed to maneuver throughout the ceiling of the shopping mall with high precision.
Two 1.5 MVa liquid type pad mounted transformers with HV cables successfully terminated and Tested by HV testing engineer.

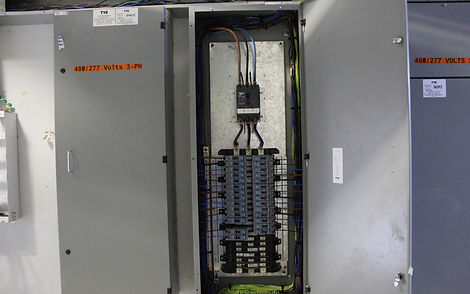

LV lighting panel with subcircuits terminated to relevant BQD breakers.
85mm HV cable terminated on a 1.5 MVa liquid type pad mount transformer using 3m cold shrink 3core terminating kit. Termination has been tested and approved by HV testing engineer.
